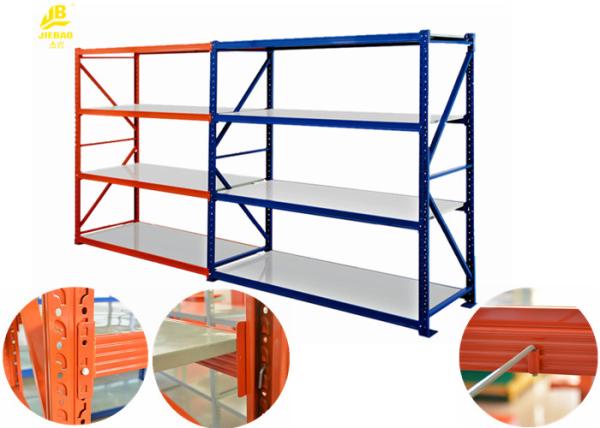

Large Capacity Medium Duty Steel Rack With Cold Rolled Steel Material
Medium Duty Steel Rack Description:
Medium Duty Steel Rack , which adopts metal shelving provides solid support and large capacity, it's normally called long span shelving, is also used for hand loading application, which loading capacity is twice of medium duty racking A. Compared with the NMA, it is more suitable for storage of metal components and is widely used in the warehouse storage of manufacture industry.
This kind of warehouse rack made of high-grade cold-rolled steel, with strong surface treatment, strong enough in construction.
Ideal for large quantity and bulk operation, and pallet racks
No nuts and bolts means no tools required to assemble.
Raise items off the floor for safety.
Medium Duty Steel Rack Specifications:
| Medium Duty Steel Rack |
Length Size |
1200mm, 1500mm, 1800mm, 2000mm |
| Wide Size |
450mm, 500mm, 600mm, 800mm |
| High Size |
1500mm, 1800mm, 2000mm, 2500mm |
| Layer |
0.5mm thickness/0.6mm |
| Column |
68x30x1.0mm/80x40x1.5mm |
| Beam |
68x35x1.0mm/75x38x1.2mm |
| Columns pitch |
45mm distance/75mm distance |
| Components |
Columns, Beam, Layer, safety pin |
| Load Capacity |
300kg/level, 350-1000kg/level |
| Color |
Blue column, Blue beam, Gray white layer
Blue column, Orange beam, Gray white layer
Orange column, Orange beam, Gray white layer
All blue color, all orange color, all gray white color.
|
Medium Duty Steel Rack Production Process:
1) Semi-finished products part: Through punching and bending machines, Cold rolled steel materials are changed to columns pipes Semi-finished products; steel sheets board will be make to steel layer, brackets, back panel etc.
2) Cleaning part: We have 10 cleaning pools. Cleaning Oil pool - Water pool - Pickling pool - Water pool - Alkali washing pool - Water pool - Acid-base neutralization pool - Water pool - Phosphate pool - Water Pool
3) After cleaning process, semi-finished products will be hanging on the spraying lines to powder coated.
4) Package.
FAQ
Q1:How many years are you guy in this business line?are you factory?
A:We have experienced structural engineer and graphic designer
which worked in this field for years,yes, we are factory.
Q2:What is the MOQ?
A:Sample order is OK, but different quantities with different price,
the more quantities, the more money you will save.
Q3:Is the display strong enough to place the liquid products?
A:We put a metal bat under each shelf to increase the bear capacity,
it can be reach 100-120kg.
Q4:How long will be take for a sample?and for mass production?
A:The lead time for sample is 5-7 days, for mass production is 10-12 days.
Q5:Can I print our logo on display?
A:Of course ,dear ,you can print anything you want.
we could send you the die line to help you make the artwork.
Medium Duty Steel Rack Catalogue PDF:
Jiabao Storage Rack Catalogue 2018.pdf
